Simple Tech Ltd. · Member of Ruxchai Group

Intelligent Work,
Automated

We build the software, the machines, and the infrastructure that run them — from ERP and warehouse management to automated storage, IoT monitoring and hyper-converged IT.

2011

Established

40+

Years — Ruxchai Group

8B+

THB Group Sales

0.35s

WebJS Response Time

Company Profile

Simple Tech company profile

Executing Company

Ruxchai Group

A diverse group of businesses with operations spanning warehousing, frozen food manufacturing, industrial and retail ice manufacturing, chemicals, information technology and automation, and renewable energy.

40+

Years of good reputation in business

100%

Family-owned and managed

8,000M+

THB in annual group sales

Group Companies

1979

Ruxchai Cold Storage Co., Ltd.

Reg. Cap: 30,000,000

1988

Nai Lai Co., Ltd.

Reg. Cap: 2,000,000

1993

Numchai Ice Co., Ltd.

Reg. Cap: 30,000,000

1995

Sinchai Ice (1995) Co., Ltd.

Reg. Cap: 60,000,000

2000

Marine Gold Products Ltd.

Reg. Cap: 210,000,000

2009

Marine Bio Resources Co., Ltd.

Reg. Cap: 35,000,000

2011

Simple Tech Ltd.

Reg. Cap: 5,500,000

2013

Enmax

Combined Reg. Cap: 460,000,000+

2015

S.I.A Farm Co., Ltd.

Reg. Cap: 5,000,000

Profile

Simple Tech Ltd.

Established in 2011 to build the systems our own group needed — then proven with customers outside it.

Vast experience developing information systems such as Enterprise Resource Planning (ERP) and Warehouse Management System (WMS)

Mobile application development experience such as RC Smart+ and OPOPP Go!

Experience in Automatic Storage and Retrieval Warehouses (AS/RS)

PLC and Modbus experience in the industrial sector

Technologies

Platforms: Windows · Windows CE · Android · iOS
Programming: PHP · JavaScript · C++ · C#
Databases: MS SQL Server · MySQL
PLC: Siemens · Wago
Design: Solidworks · Solid Edge

Capabilities

Typically each field is locked into its own silo

In the world of technology, building a great product requires depth in several fields at once. Most vendors have one. We have them all.

Software Development

Industrial Automation

IT Hardware & Networking

Mobile Development

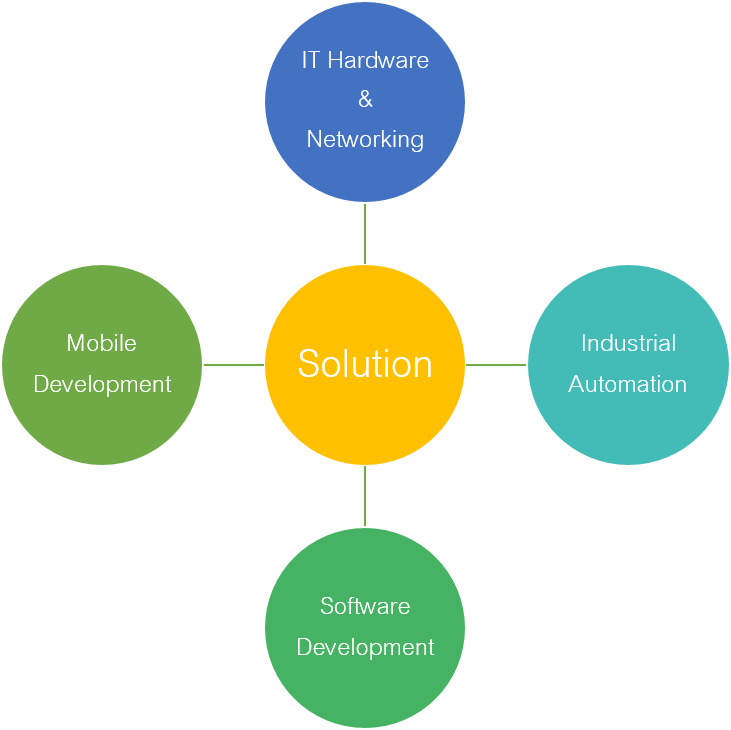

Four fields converging on one solution — Most vendors own one silo. Simple Tech brings all four together into one solution.

Building a great product requires:

In-depth knowledge and experience in both the specific industry and the numerous fields within the technology sector

Deep understanding of the problems in day-to-day operations

Deep understanding of the requirements from management and operators

Experience in both software and hardware development, particularly industrial systems such as PLC and Modbus as well as UI development

Experience in IT infrastructure and computer networks

Experience in mobile application development to meet the demands of today's hi-tech customers

We have it all.

Built on real problems and experiences faced by the subsidiaries in our group and by external customers

Leverages the software development capabilities, experience and proprietary know-how of Simple Tech

Our Platform

WebJS Framework 3.0

Our own software architecture platform, built on Bootstrap 4.0. New features can be delivered fast with few bugs, and a built-in code generator develops entire modules within seconds.

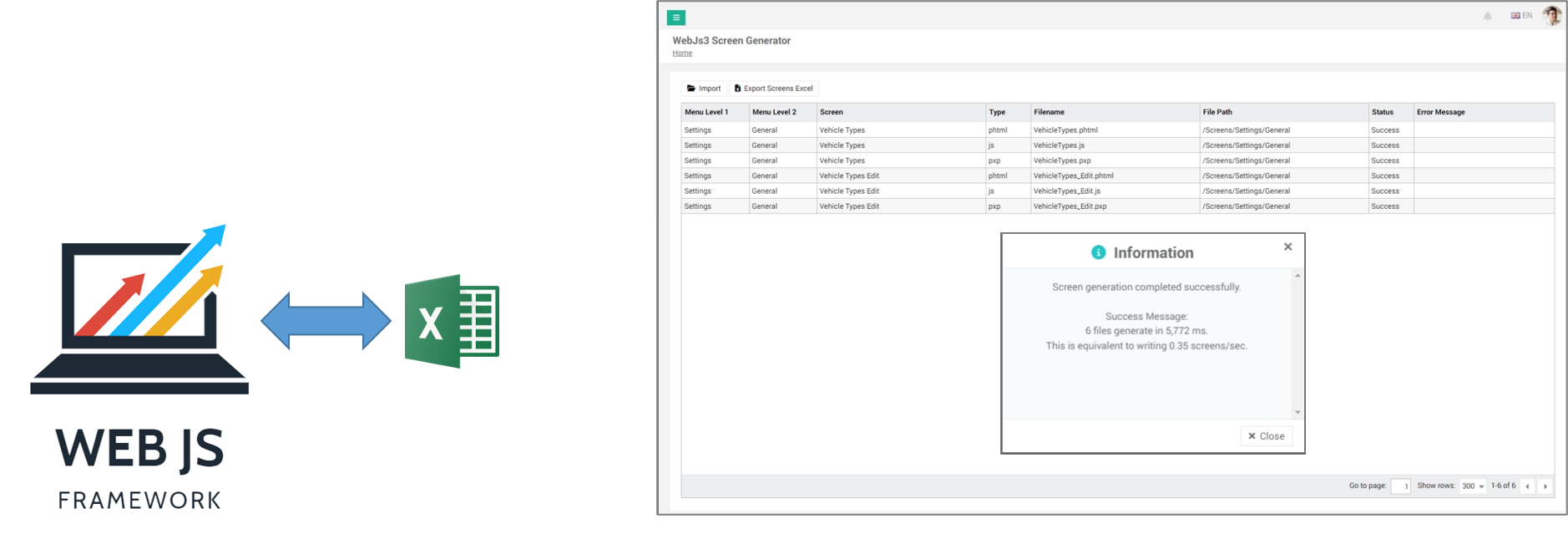

WebJS Framework code generator — The built-in code generator turns a data definition into a working module in seconds.

0.35s

Response time

ALL-IN-ONE

One platform for every module

FUNCTION FIRST

Designed around the work, not the screen

RESPONSIVE

Any screen, any device

Web-based Architecture

Anytime / anywhere / any device — and anything.

Integration

Works with any device.

Usability

Works on PCs, smartphones, tablets and digital signage.

Language

Custom translations and customizations fully supported.

Management

Easy — no installation required.

Code Generator

Automatic development of entire modules within seconds.

Our Founder

Luesak Luesukprasert

Founder & Managing Director

Education

M.S., Information Systems Management — May 2001

Carnegie Mellon University, Pittsburgh, PA

Specialized in Electronic Commerce · Highest Distinction

Accelerated Master's Program (AMP): pursued Bachelor and Master degrees simultaneously

GPA 4.04 / 4.33

B.S., Business Administration — Dec 2000

Carnegie Mellon University, Pittsburgh, PA

Specialized in Finance

University Honors and Special Recognition for study abroad in Beijing, China

GPA 3.92 / 4.00

Work Experience

Enmax Group — Samut Sakhon, Thailand

Founder & Managing Director — Present

Thailand's largest privately owned solar EPC by sales volume

Ruxchai Cold Storage — Samut Sakhon, Thailand

Managing Director — Present

First Thailand ASRS cold storage

Simple Tech Ltd. — Samut Sakhon, Thailand

Founder & Managing Director — Present

Design and develop automation systems

Vargo Adaptive Software Ltd. — Austin, TX

Chief Software Architect — Apr 2009 – Jan 2011

Design and develop automated warehouse solutions

Our Clients

Project References

Client	Project Name	Software	AS/RS	IoT
Ruxchai Cold Storage	SmartERP, SmartStore, SmartSecurity, SmartASRS, SmartSync, SmartBI, Automatic Warehouse	✓	✓	✓
Marine Gold Products	SmartERP, SmartStore, SmartSecurity, SmartSync	✓	—	—

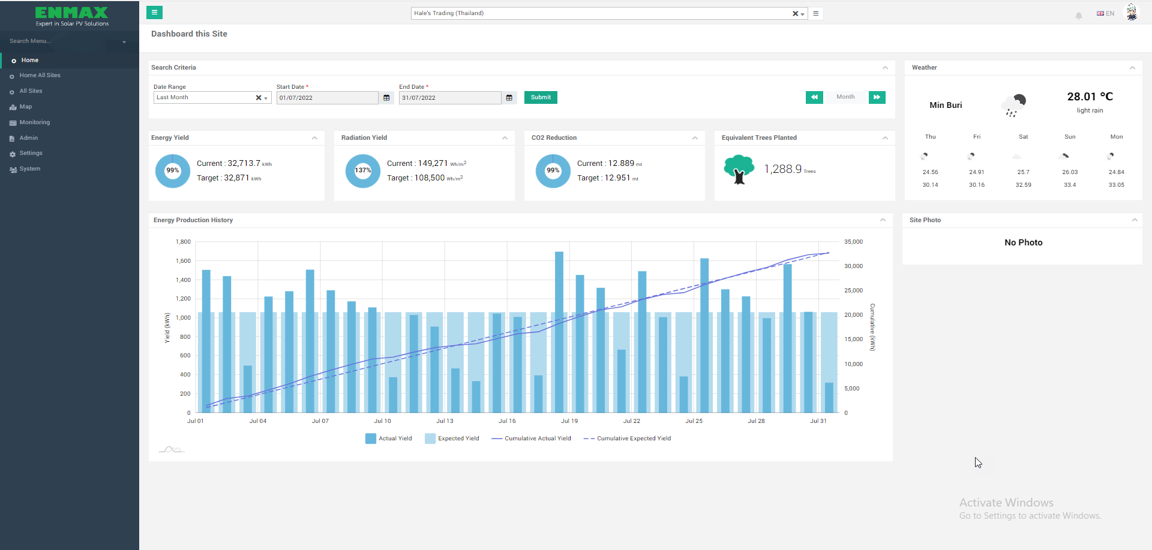

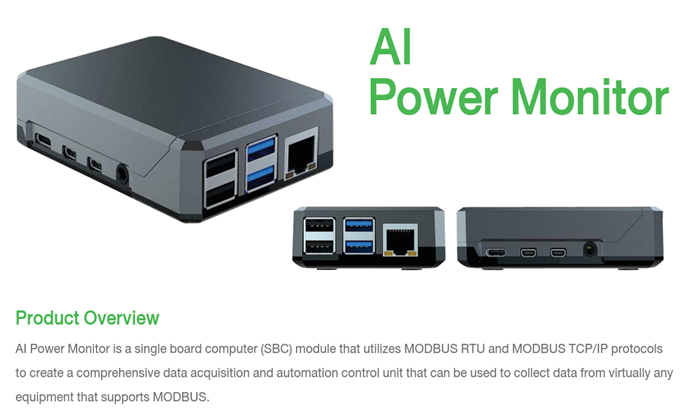

Enmax	SmartERP, SmartSync, AI Power Monitor	✓	—	✓
MK Cold Storage	SmartStore, Automatic Warehouse	✓	✓	—
Kongphop Frozen Foods	SmartStore, Automatic Warehouse	✓	✓	—
ARC Binh Duong	SmartStore, Automatic Warehouse	✓	✓	—
E & C Frozen Food	SmartStore	✓	—	—
Pacific Cold Storage	SmartStore, SmartRFID	✓	—	—
Chocksamut Marine	SmartStore	✓	—	—
Sinchai Ice	Automatic Ice Order Entry	✓	—	—
Numchai Ice	Automatic Ice Order Entry	✓	—	—

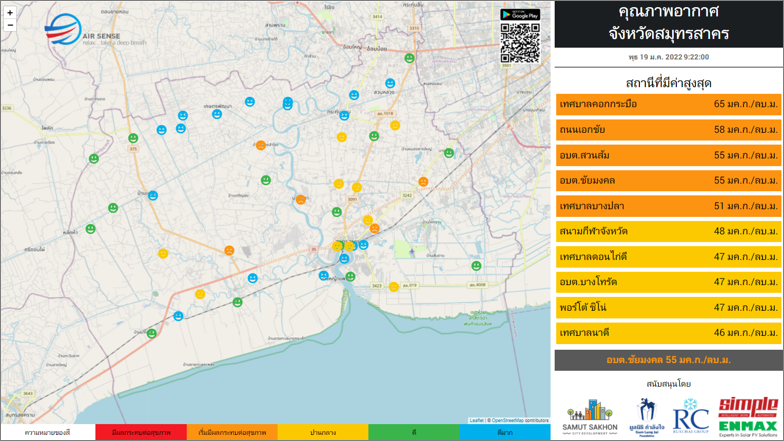

Samut Sakhon City Development	AirSense	✓	—	✓

Technology Partners

Siemens Wago SEW Leuze Omron Panasonic Mettler Toledo Nutanix Dell EMC HPE Palo Alto Networks Tableau

Solutions 01

Software Solutions

All our software systems are built on our own proprietary WebJS Framework 3.0, which enables rapid development that can meet the ever-changing needs of today's fast-paced business environment.

Architecture

One stack, nine applications

Access Platforms

Desktop Devices Industrial Handheld Computers Smart Phones

Applications

Smart ERP

Smart Store

Smart Security

Smart RFID

Smart ASRS

Smart Trace

Smart DC

Smart Sync

Smart BI

Smart Sync handles data aggregation · Smart BI handles business intelligence

Framework Layer

WebJS Framework 3.0

Base Layer

PHP JavaScript SQL Server HTML

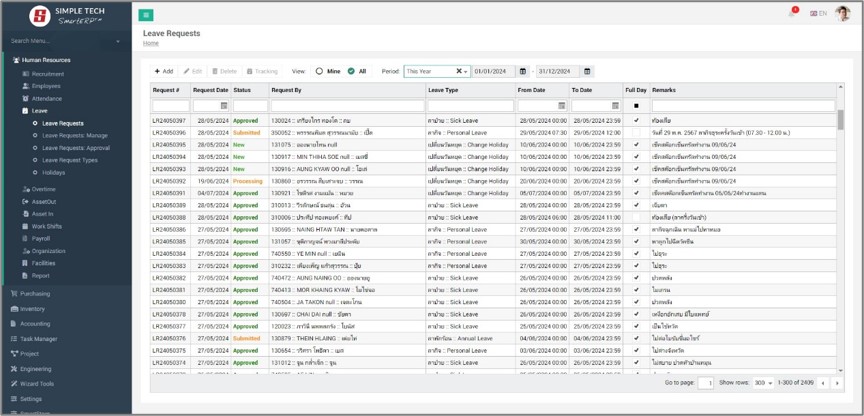

Smart ERP

Enterprise Resource Planning

Human Resources

Leave management, overtime management, work shift management, time attendance, organization chart, employee data, facilities management

Procurement

Purchase requests, purchase orders, expense management, budgeting, items data

Inventory

Receiving, withdraw, returns, move / transfer, stock adjustments

Engineering

Maintenance requests, machine records, resource consumption records

Project Management

Project approval, project budgeting

Task Manager

Task assignment, scheduled tasks, task templates

Security

Access management and log, change history

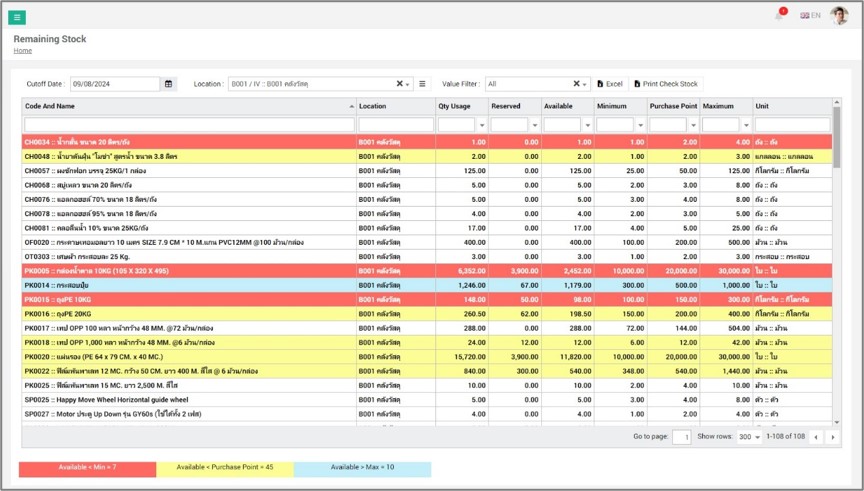

Real-time stock view — Colour-coded real-time stock

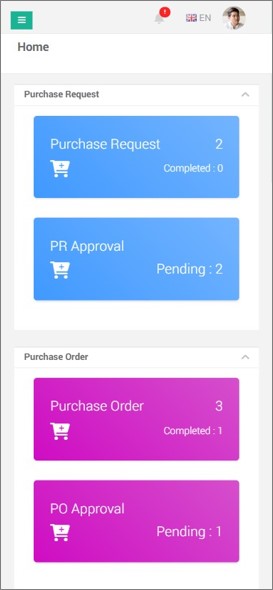

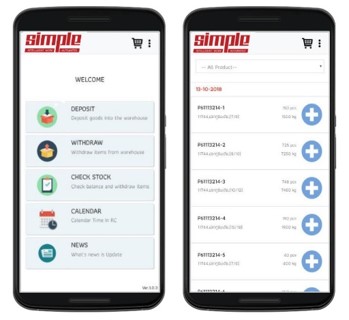

Smart ERP mobile app — Mobile approvals on the go

SmartStore

Warehouse Management System

Inbound / Outbound / Check Stock

In / out order processing, location search, move, hold / unhold, FIFO / FEFO / LIFO, loading in / out, outbound preparation, work order import, direct B2B data exchange, stock checking

Mobile Computer

Real-time mobile computer integration, container color coding

Work Load Management

Truck queue, work queue management, automatic work assignment, efficiency tracking, break tracking, ASRS system monitoring, control and alerts

Reports & Analysis

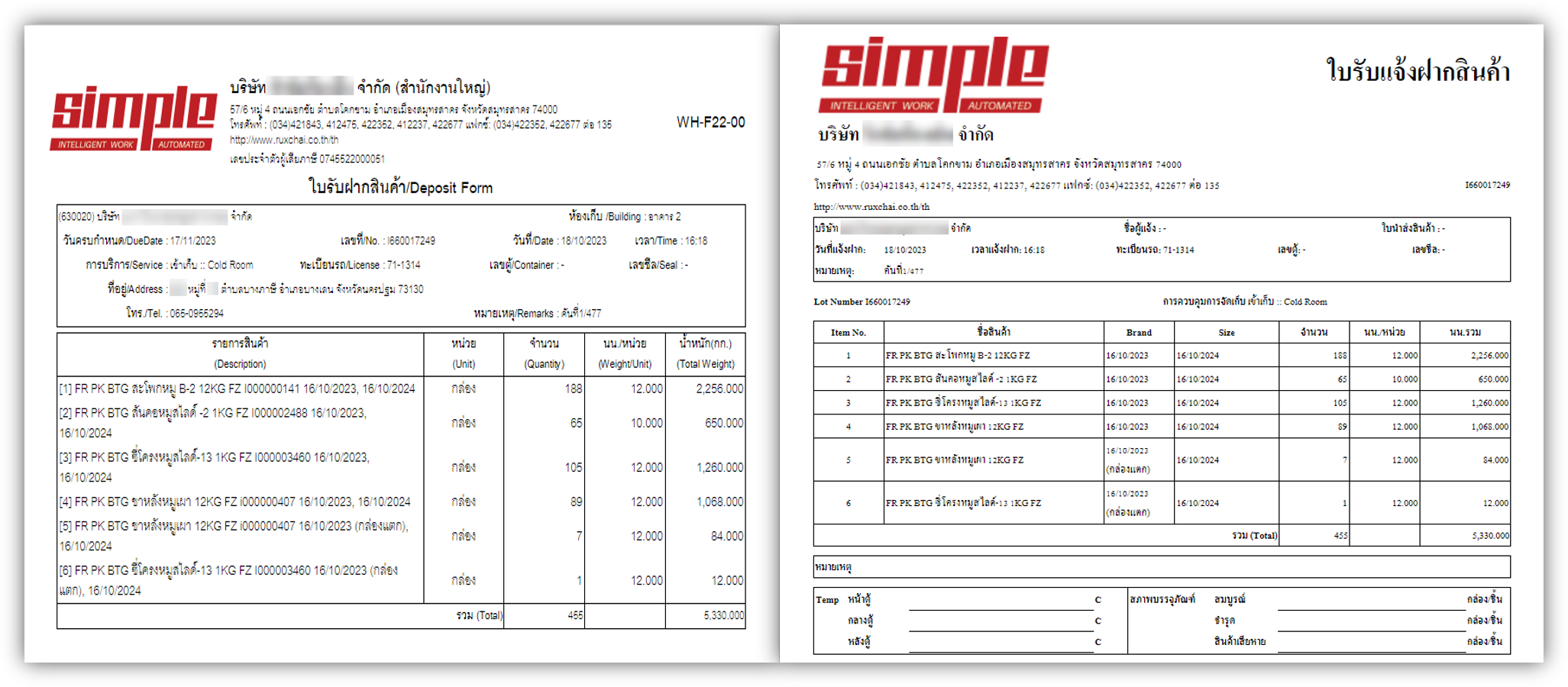

Automatic inventory report sent via email, loading receipt, stock card, stock movement, deposit / withdraw receipts, system throughput, work efficiency, KPI

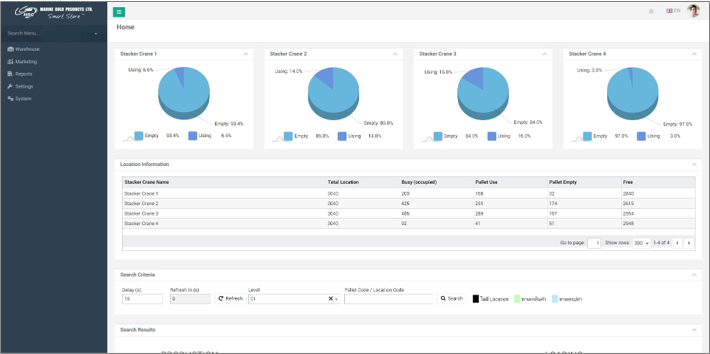

Warehouse dashboard — Operations dashboard

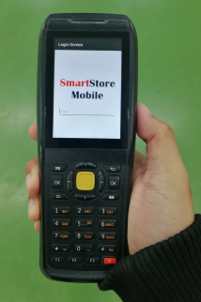

SmartStore mobile computer login — Rugged mobile computer

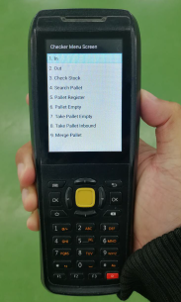

SmartStore checker menu — Handheld task menu

Smart Security

Visitor Management

Logs visitor information and prints visitor slip

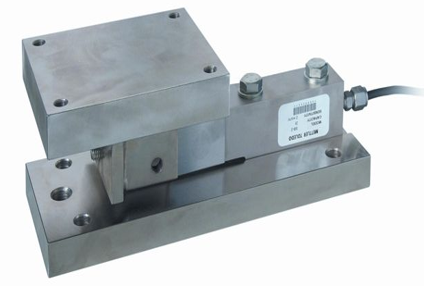

Links to truck scale to check inbound and outbound weight

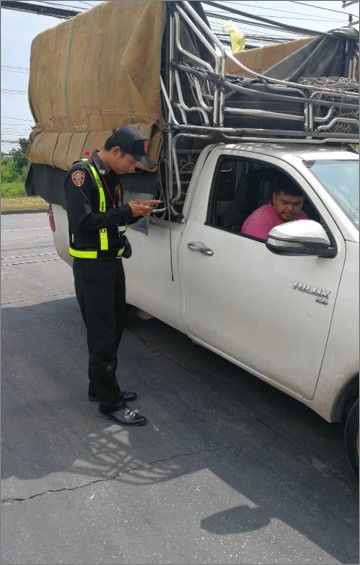

Visitor registration at gate — Gate check on an inbound vehicle

Truck check-in at gate — Visitor details recorded on site

Smart RFID

RFID Asset & Inventory Tracking

RFID-based identification integrated directly into SmartStore

Deployed in production at Pacific Cold Storage

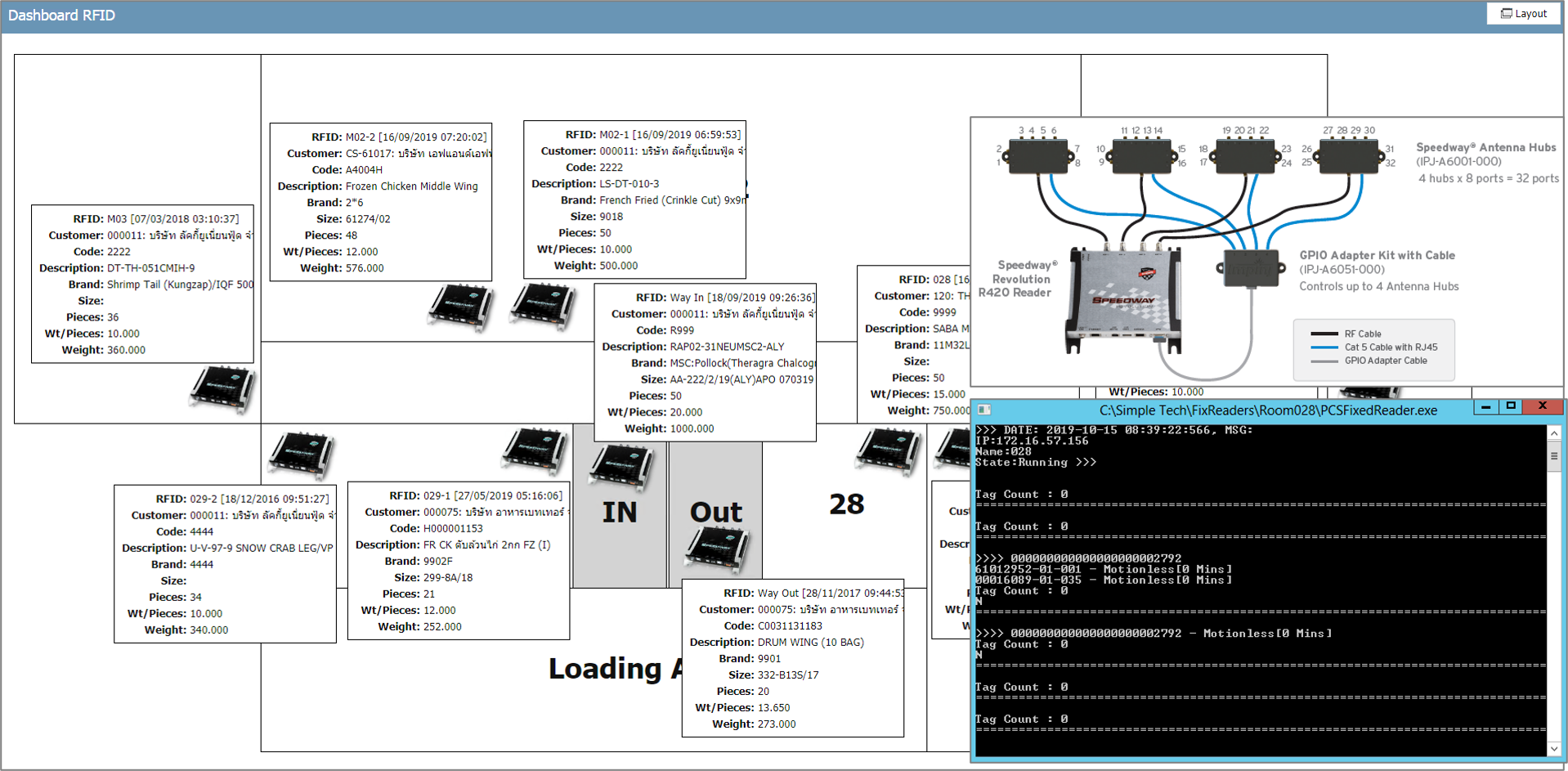

RFID dashboard — fixed readers at the loading area

Smart ASRS

Warehouse Control System

Control

Control automatic warehouse equipment in auto, semi-auto and manual modes. Control multiple systems on one interface.

Monitoring

Real-time monitoring of warehouse operations, location occupancy, storage capacity

Configuration

Configure equipment speed / timing and other settings

Security

User management, login tracking, change history

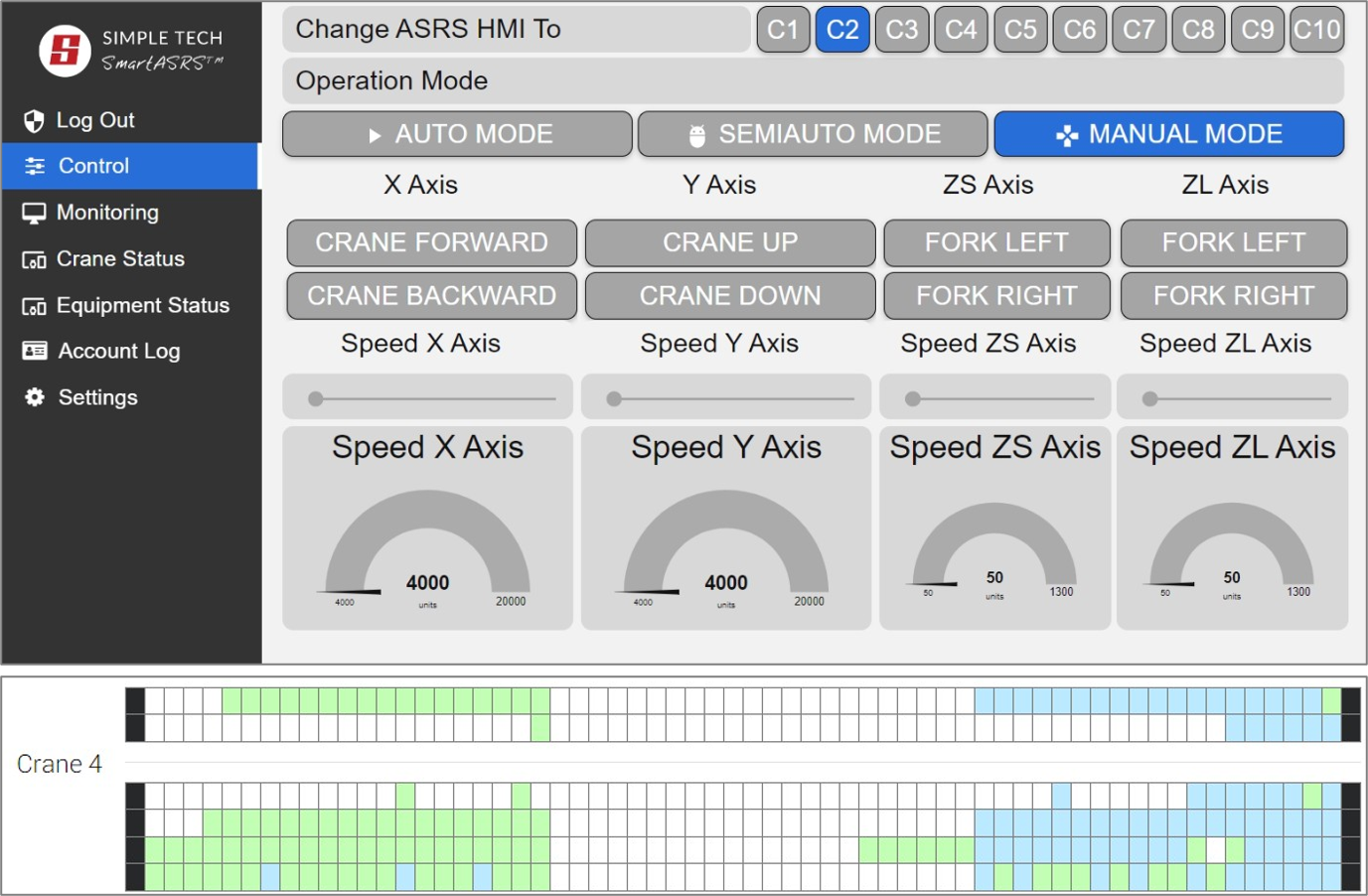

Smart ASRS HMI control screen — Smart ASRS control screen — auto, semi-auto and manual crane operation on one interface

Smart Trace

Product Traceability

Product Information

Product data management, product traceability management, production details. View traceability information anytime, anywhere.

Production Line Integration

QR code printing on product packaging using inkjet or laser

QR Code Generation

Unique QR code for each and every item

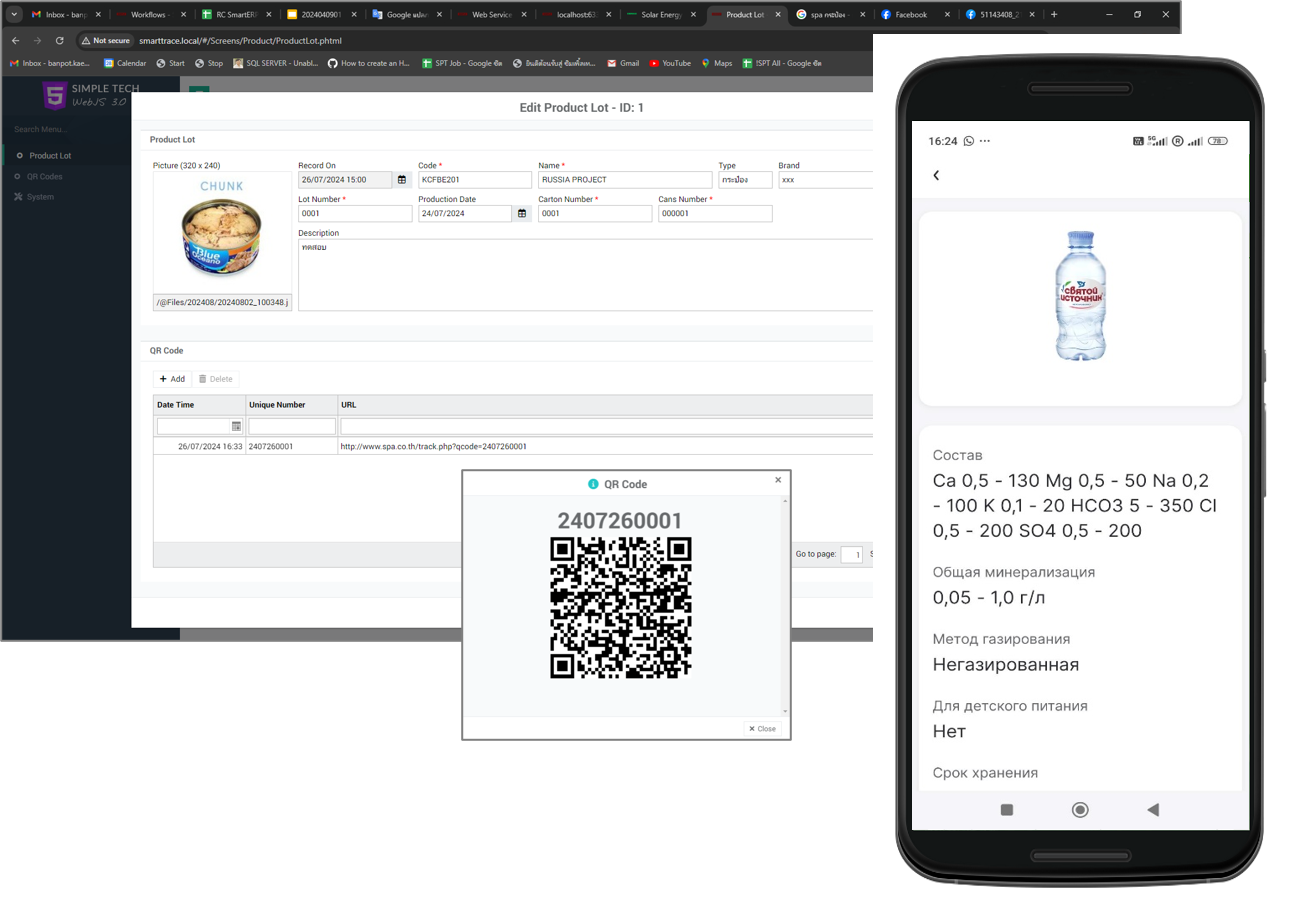

Smart Trace QR traceability — Scan any item's QR code to view its full production history

Smart DC

Distribution Centre Management

Order Management

Inbound, outbound, cross-dock, invoice management, email order confirmation, delivery plan and scheduling, check and verify missing / damaged / extra items

Document Management

Document tracking, DLD quota and permit management

Reports

Truck loading reports, item delivery reports

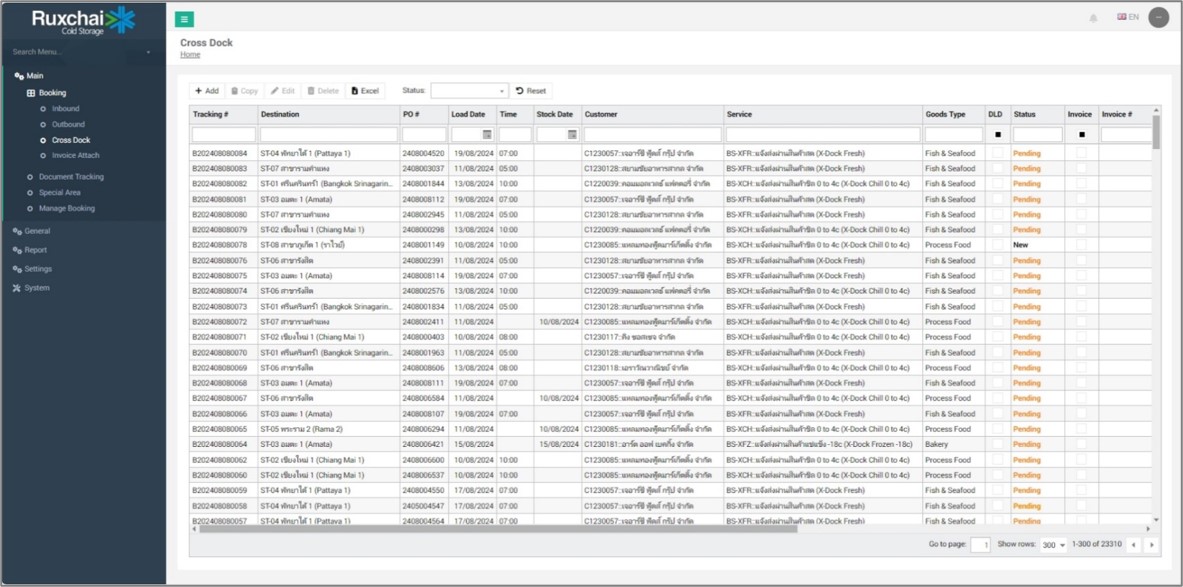

Smart DC order management screen — Distribution centre order and delivery management

Smart Sync

Data Synchronization & Aggregation

Data Everywhere

Data synchronizes automatically between different Simple Tech systems as well as external systems such as WINspeed accounting.

Real-time data synchronization

Automatic change tracking

Sync conflict resolution capabilities

Data Aggregation

All data is aggregated into a single Smart BI database. Tableau Business Intelligence and Analytics is used to analyze and translate data into useful information and reports.

Typical topology

Ruxchai Branch 001 · Ruxchai Branch 002 → SmartStore / Smart ERP / Smart DC → Online Private Cloud → SmartStore Online · Smart BI · WINspeed Accounting

Smart BI

Business Intelligence

A powerful Tableau dashboard provides detailed, drill-down enabled, critical business intelligence to help our customers manage their operations with optimal efficiency and effectiveness.

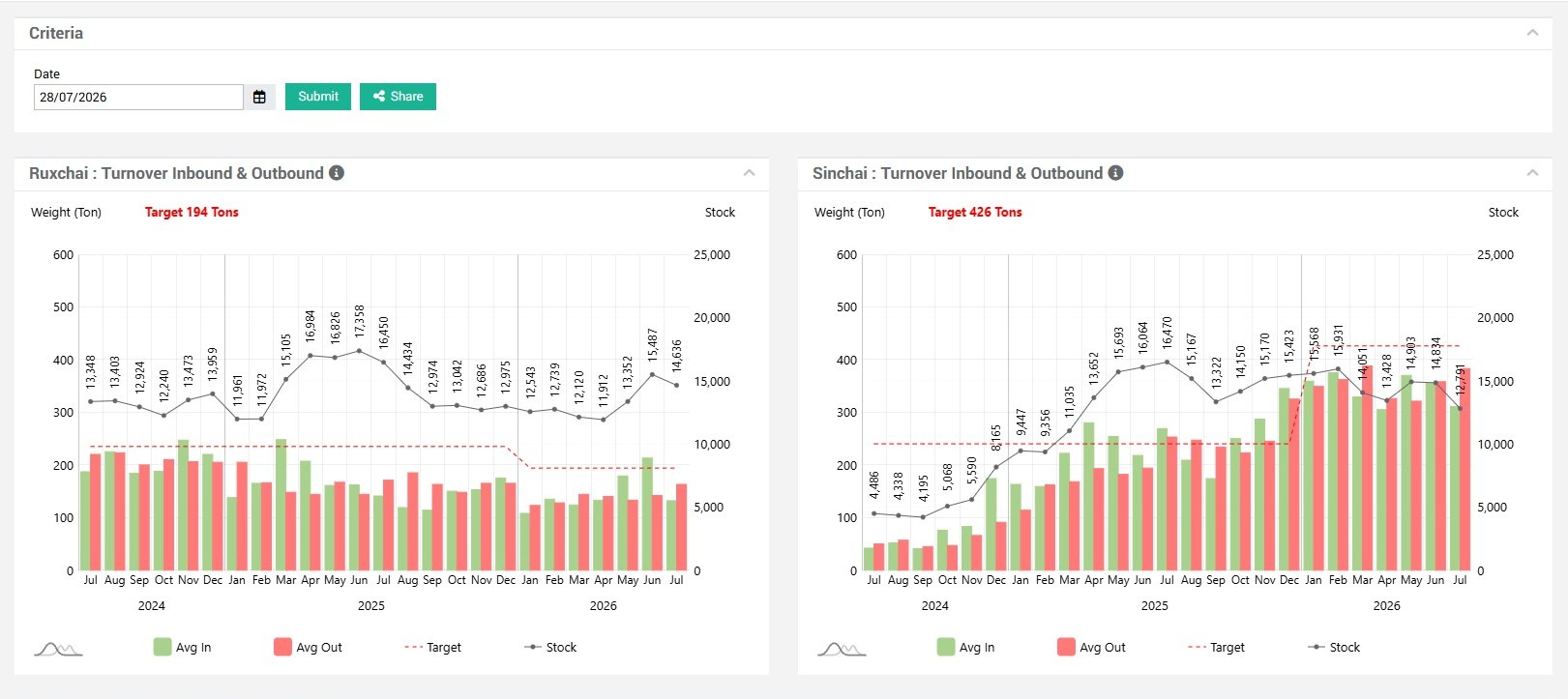

Smart BI turnover dashboard — Inbound / outbound turnover by site, with stock levels and targets

Solutions 02

Warehouse Solutions

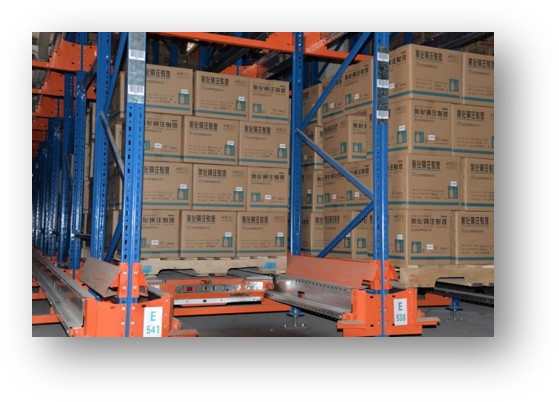

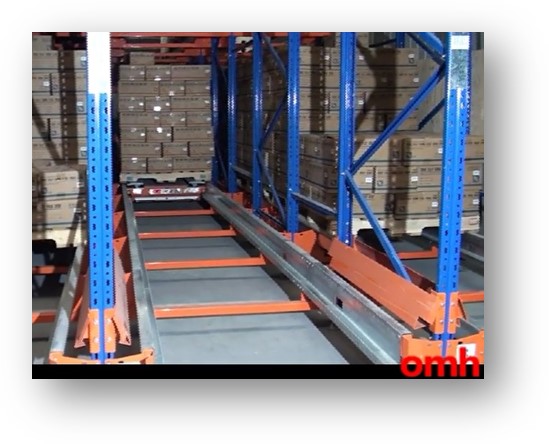

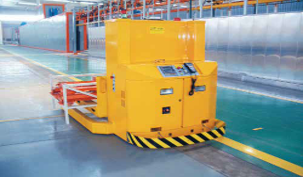

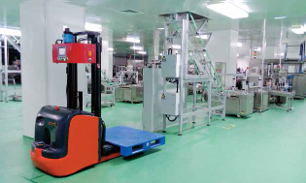

Automatic Storage and Retrieval Systems, racking, shuttles, AGVs and conveyors — designed, supplied, installed and commissioned, and driven by our own Smart ASRS control software.

Our Partner

OMH

Shanxi Oriental Material Handling Co., Ltd.

OMH corporate building — OMH company introduction

Shanxi Oriental Material Handling Co., Ltd. (OMH) is a high-tech company specializing in the supply of intelligent logistics conveying systems, intelligent logistics storage systems, AGV industrial robots and supply chain software. It is a manufacturer and integrator of intelligent logistics equipment.

Taiyuan OMH Software Co., Ltd., Taiyuan OMH Equipment Co., Ltd., Shanxi Oriental Material Mechanical and Electrical Installation Co., Ltd., OMH (Shanghai), OMH (Shenzhen) and OMH (Tianjin) are wholly-owned or holding subsidiaries of OMH.

On 30 June 2015, OMH was listed on the Shenzhen Stock Exchange under stock code 300486 and the stock name "Dongjie Intelligent".

SZSE: 300486 Dongjie Intelligent

OMH corporate video

ASRS

Automatic Storage and Retrieval System

Simplifies warehouse operations via automation, with full inventory control and reporting.

Increase capacity

Via efficient use of space

Improve efficiency

Work efficiency and warehouse throughput

Reduce errors

Automation removes manual mistakes

Reduce accidents

Fewer people in the aisles

Full inventory control

Complete control and reporting

Simplified operations

Warehouse operations simplified via automation

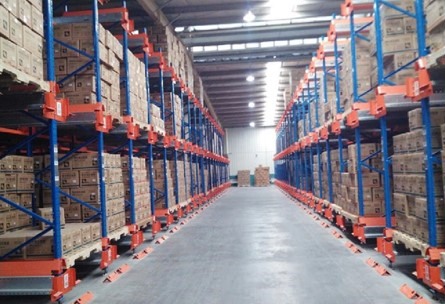

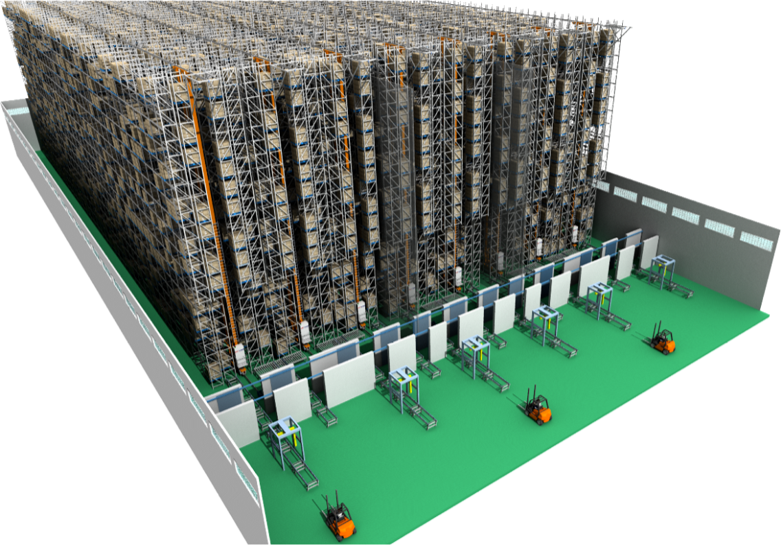

Automated storage aisle — High-density racking aisle

Equipment

Racking System

Material

Grade Q345D or better

Beam

Strong pallet support beam

Spacing

Pallet spacing designed for overhang

Hanging Bay

Hanging bay for high-speed ASN

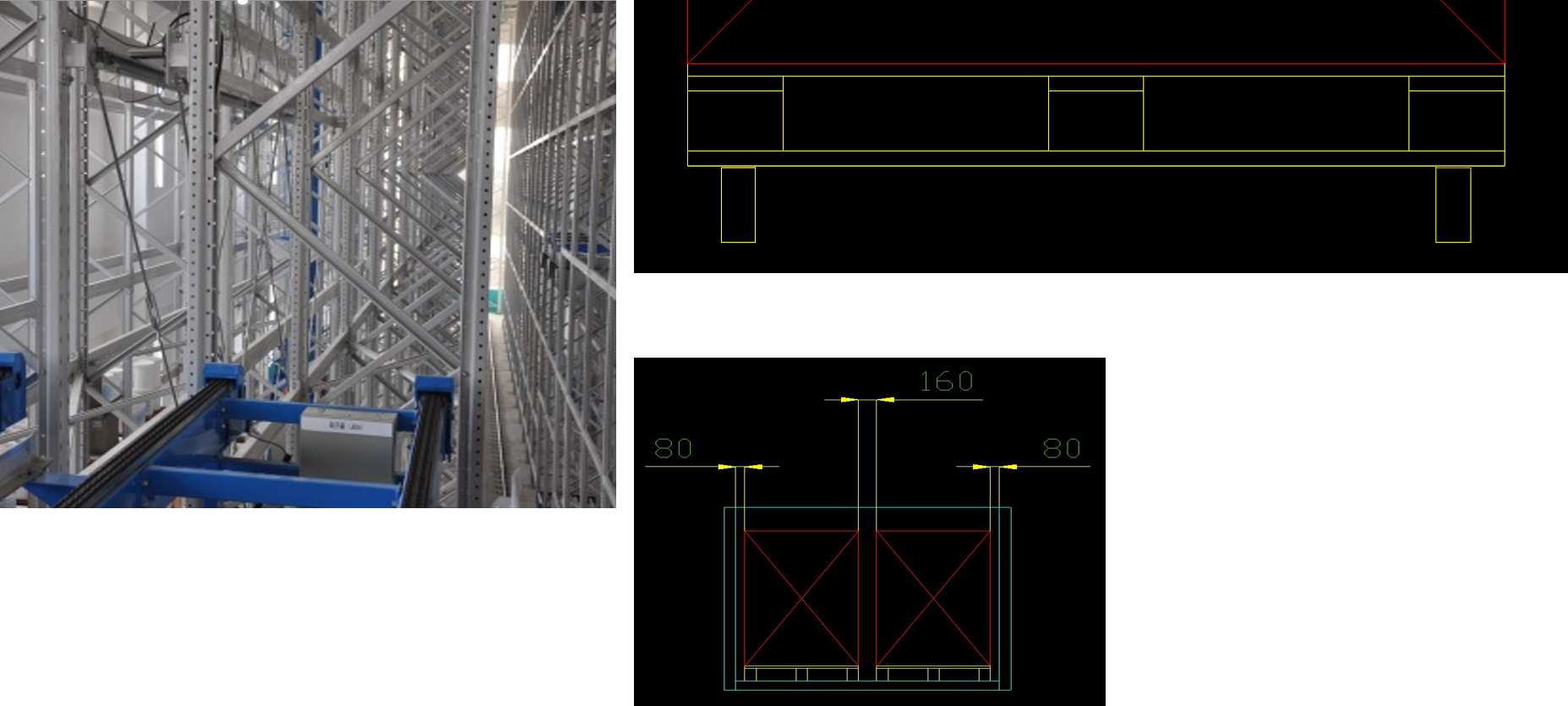

Racking system — installed and engineering drawing — Installed racking alongside its structural engineering drawing

Equipment

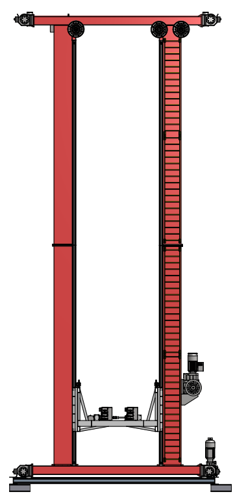

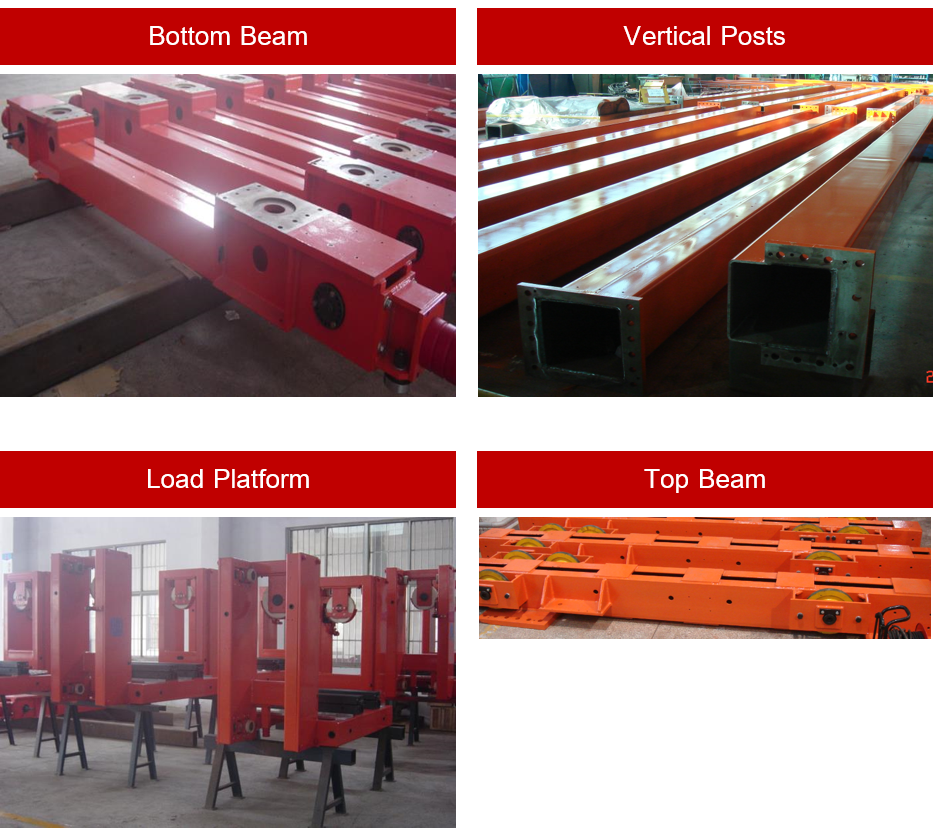

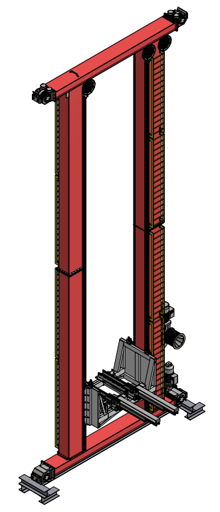

Stacker Crane

* Specifications subject to revision per requirements

Item	Technical Parameters
General
Specification	Double-deep, double-post
Quantity	6 sets
Rated loading capacity	Max. 1,000 kg
Power supply	Panasonic TN-S
Communications	Leuze infrared light communication
Controller	Siemens S7-1500 PLC
HMI	Siemens HMI TP 6”
Operation modes	Auto, semi-automatic, manual
Operation type	Single pallet cycle
Movement
Horizontal speed	180 m/min
Acceleration	≤ 0.4 m/s²
Motor reducing gear	SEW
Addressing mode	Leuze laser
Positional accuracy	±5 mm
Loading platform
Speed	30 m/min
Acceleration	≤ 0.4 m/s²
Motor reducing gear	SEW
Brake mode	Electric brake, brake resistance

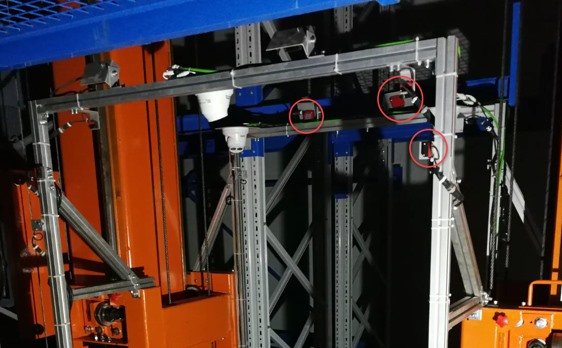

Cargo dimension detection	Photoelectric detection
Lifting way	Wire rope lifting
Addressing mode	Leuze laser
Positional accuracy	±5 mm
Fork
Fork way	Double extension fork
Speed	30 m/min
Acceleration	≤ 0.5 m/s²
Motor reducing gear	SEW
Positional way	Omron encoder + Leuze photoelectric
Positional accuracy	±3 mm

Top Beam Vertical Posts Load Platform Bottom Beam

Stacker crane — isometric view — Isometric view

Stacker crane components — Top beam, vertical posts, load platform, bottom beam

Stacker Crane Safety

Compliant with China JB5319.2-91 Safety Code for Rail Tunnel Stacking Crane and the European FEM standard.

Speed limit anti-falling device

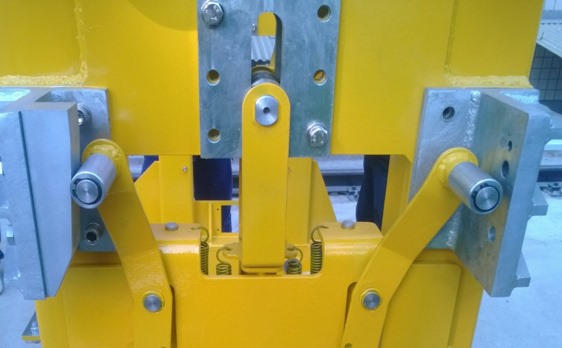

Rope breaking protection device

Rail clamp (anti-falling)

Safety factor of wire rope

Movement endpoint limit sensor

Lifting limit device

Fork load limit and resistance limit

Emergency stop button

Cargo size and position detector

Electrical interlock protection

Electrical grounding

Indicator lamp

Service / safety ladder

Crash protection

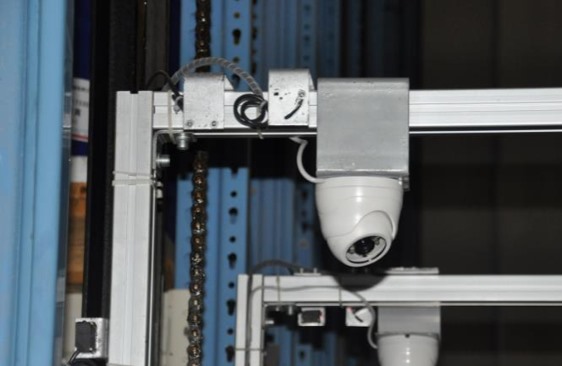

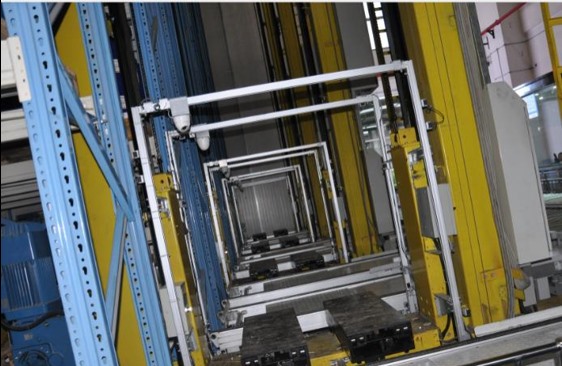

CCTV on crane and PTZ CCTV

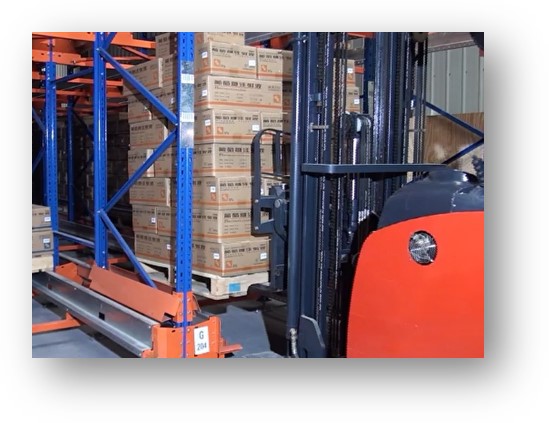

Radio Shuttle

Ordinary forklift + radio shuttle, for storage of raw materials and finished product.

Unit load size	1000 × 1200 × 1150 / 1250 / 1680 mm
Pallet weight	900 kg
Storage capacity	20,672
Radio shuttle	8 sets

Scope of Supply

Rack, shuttle, electric control, WMS / WCS, design, manufacturing, installation and commissioning

Automated Guided Vehicle (AGV)

Equipped with an automated guided electromagnetic or optical device, the AGV travels along a predetermined path — an unmanned transporter with security protection and a variety of transfer functions.

No pollution to the surrounding environment — rechargeable battery as its power source

Route and behavior controlled by computer, or self-routing via an electromagnetic path-following system

Fast action, controllable and secure compared to walking operators

Requires no tracks or frame fixtures, unlike other material handling equipment

Enables flexible unmanned production in an automated logistics system

Equipment

Conveyor System

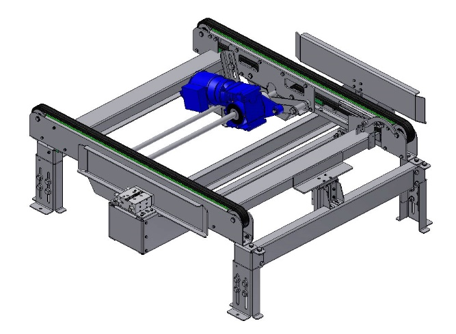

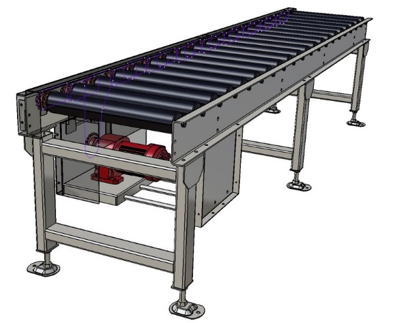

Chain Conveyor Roller Conveyor Lift & Turn Conveyor Weight Scale

Item	Technical Parameters
Conveyors
Rated load	1,000 kg (including pallets)
Speed	0–16 m/min (frequency control)
Electric machinery	SEW
Chain	Double row chain
Roller	Dia. 76 × 3 mm, galvanized steel, surface knurled
Control mode	Manual, automatic
Surface treatment	Surface sprayed
Noise	≤ 75 dB
Weighing System
Brand	Mettler Toledo
Rated load	1,500 kg
Accuracy	± 1 kg
Overload capacity	150%
Other features	Waterproof design

* Specifications subject to revision per requirements

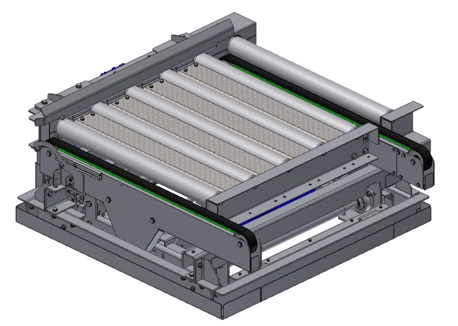

Lift and turn conveyor — Lift & turn conveyor

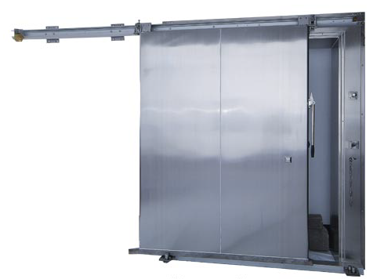

Cold Storage Insulated Door

Buffer room and cold storage door

Material	0.8 mm Stainless Steel 304
Insulation material	Polyurethane 40 kg/m³
Insulation thickness	200 mm
Dimensions (W × H)	1500 × 1800 mm
Drive system	Electrical motor
Control system	Interlocking (one open, other close)
Speed	0.25–1.5 m/s
Heater	Door frame heating system to prevent ice build-up

HMI System Control

HMI control station

Material	Stainless Steel
Control features	Emergency stop; automatic, semi-automatic and manual modes; controls cranes and conveyors

Conveyor Status & Control Control Menu

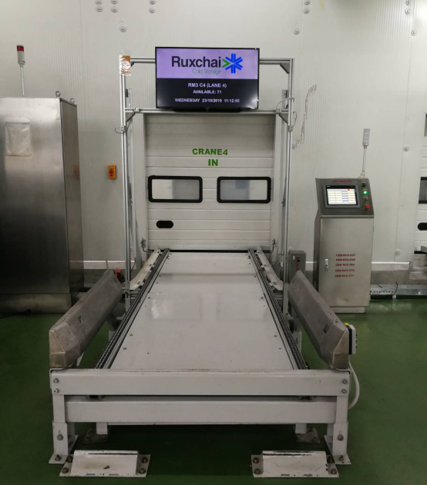

Order Display Board

TV display on every conveyor

Type	40” LCD TV
Features	Order information for pending and active orders; outbound loading dock number; fault information and fault alarms; real-time updates; customizable graphics and design

Active Work (Inbound) Active Work (Outbound) No Work

Solutions 03 & 04

IoT & IT Solutions

Intelligent hardware and universal software for energy and environmental monitoring, on top of the server, network and backup infrastructure that keeps Industry 4.0 operations always on.

IoT

AI Power Monitor

A truly universal resource monitoring, management and control system. Designed for ease of use for our customers, and in-depth analysis, efficiency and accuracy for our service team. It contains AI algorithms to detect and alert on problems even before they occur.

Supported energy technologies

SolarWindBiomassBiogasHydroGeothermalTidalESS

One universal software platform, accessed from desktop and mobile devices, backed by intelligent hardware.

Universal

Able to support various types of energy technologies: solar, wind, biomass, biogas and more.

Integration

Integrates data from all sites to create a comprehensive system for both management and operators.

Availability

Ubiquitous availability — anytime, anywhere, mobile.

Easy

Easy to use. Easy to understand.

Extensible

A universal system able to support current as well as future needs, including equipment we have never seen or used before.

Adaptive

Able to respond and adapt to new requirements quickly.

Intelligent

Analyzes problems using AI algorithms and notifies service operators in real time via the social media applications prevalent in the region.

Unique

Gives customers and operators unique views and insights into their operations and their power generation system.

Intelligent Hardware

AI Power Monitor includes both hardware and software. On the hardware side, we replace brand-specific data loggers with our own customized controller.

Dashboards

Energy Yield

Actual vs. hourly energy yield target, actual vs. hourly irradiation target, actual vs. hourly CO₂ target, equivalent trees planted, weather forecast, daily and cumulative monthly energy yield vs. target — mobile device ready.

Map View

Drop pin indicates the location of each site.

Power Balance

Real-time zero export, inverter power limit, power from grid, power from solar.

Energy yield dashboard — Energy yield vs. target dashboard

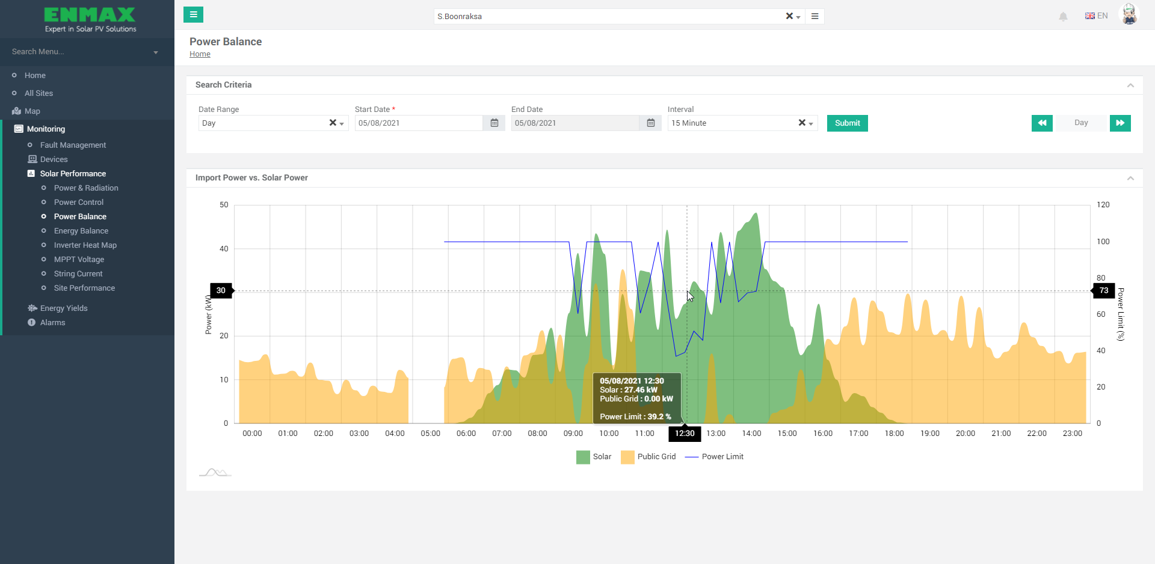

Power balance dashboard — Real-time power balance dashboard

IoT

Air Sense

City-wide AQI monitoring: a high quality but low-cost air quality monitoring unit, deployed as a network across every tumbon.

Supports all 6 components of AQI

PM10 PM2.5 NO₂ SO₂ CO O₃

Network Coverage

A network of units installed at every tumbon.

Government Data Integration

Integration with data from the Department of Industrial Works — factory type, boiler type, boiler size and AQI data.

Solar and Battery

Solar integrated monitoring unit with a Li-FePO₄ battery built in, for anytime / anywhere monitoring.

Historical Data

Time Machine — replay AQI every hour, with daily, weekly and monthly statistics.

City-wide AQI map — City-wide AQI monitoring map with live tumbon-level readings

Air Sense station detail — Station detail

Evolution of Server Infrastructure

As industry moves towards 4.0, robust and reliable server infrastructure is absolutely critical for minimizing problems and ensuring always-on business operations. There has therefore been a major trend to shift away from traditional server infrastructure towards a hyper-converged environment.

Pre 2011

Traditional

Key Points

Isolated stand-alone physical servers

Application services belong to and exist in each physical server

May have limited redundancy such as dual power supply or RAID storage

Benefits

Simple — only low-level IT personnel is needed

Drawbacks

No way to recover from failure quickly

No way to achieve zero downtime

Time consuming to manage and configure

Hard to backup and restore

No load balancing

Service dependent on hardware — if one server is damaged then all its services are down

2011 – 2016

Converged

Key Points

A hypervisor abstracts server services into virtual machines (VM)

Storage via SAN or NAS, which provides high redundancy so broken hard disks do not bring down the entire system

A fast network, usually 10 Gbps, connects the servers to network storage

Benefits

Software and hardware abstraction — services no longer depend on the physical host and can be moved without shutdown

Automatic load balancing

High availability — when a host breaks down, all its VMs migrate automatically

Easy to manage from a single hypervisor interface

Able to easily backup and restore an entire server

Drawbacks

Extra cost for the hypervisor platform

Extra cost for SAN and NAS

Slow — data read/write goes via the network

Virtualization “sits on top” only

2016 +

Hyper-Converged

Key Points

Computing, networking and storage all combined into one integrated cluster of nodes

Storage via local host SSD and HDD — no need for network storage anymore

The hypervisor platform is integrated into the system

Benefits

All the benefits of converged infrastructure — and much more

Extremely fast — no network hop, storage IOPS 8× faster

Smaller footprint — saves space

Lower power consumption due to fewer pieces of equipment

Linearly scalable — add new servers without powering down

Able to realize always-on operations

Able to backup the entire server via enterprise-grade backup software

Drawbacks

None

Nutanix: the best hyper-converged

Nutanix is a leading provider of hyper-converged infrastructure (HCI) software which virtualizes all the elements in a traditional server infrastructure. As of 2019, the company had 28.9% market share in the HCI space.

28.9%

HCI market share (2019)

IT Infrastructure Design

A reference topology covering server, network and backup infrastructure.

Perimeter

Internet → Palo Alto PA-220

Core

HPE Core Switch 5130 (stack + fiber)

Access

HPE Aruba 2530 24G Switch

Compute

Dell EMC XC640ENT

Client Computers CCTV Fiber Backbone Switch Stacking

Intelligent Work,Automated

Ruxchai Group

Group Companies

Simple Tech Ltd.

Technologies

Typically each field is locked into its own silo

Building a great product requires:

WebJS Framework 3.0

Web-based Architecture

Integration

Usability

Language

Management

Code Generator

Luesak Luesukprasert

Education

Work Experience

Project References

Technology Partners

Software Solutions

One stack, nine applications

Smart ERP

Human Resources

Procurement

Inventory

Engineering

Project Management

Task Manager

Security

SmartStore

Inbound / Outbound / Check Stock

Mobile Computer

Work Load Management

Reports & Analysis

Smart Security

Smart RFID

Smart ASRS

Control

Monitoring

Configuration

Security

Smart Trace

Product Information

Production Line Integration

QR Code Generation

Smart DC

Order Management

Document Management

Reports

Smart Sync

Data Everywhere

Data Aggregation

Smart BI

Warehouse Solutions

OMH

Automatic Storage and Retrieval System

Increase capacity

Improve efficiency

Reduce errors

Reduce accidents

Full inventory control

Simplified operations

Racking System

Material

Beam

Spacing

Hanging Bay

Stacker Crane

Stacker Crane Safety

Radio Shuttle

Scope of Supply

Automated Guided Vehicle (AGV)

Conveyor System

Cold Storage Insulated Door

HMI System Control

Order Display Board

IoT & IT Solutions

AI Power Monitor

Universal

Integration

Intelligent Work,
Automated
